BK polishing wheels For Glass

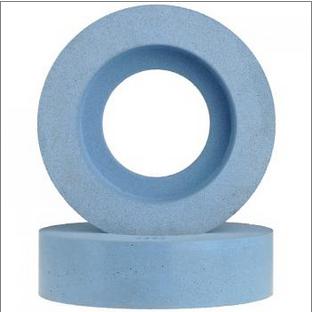

1. BK polishing wheels (rubber bonded)
BK wheel is also called edge polishing wheel for glass, which is made of special materials. Its scope of application includes glass edge polishing of straight edged machines, double-edged machines, shaped edge grinding machine, and straight-line round edge machines. BK wheel is especially used for fine processing of furniture glass, decorative glass and craft glass. BK cup wheel is mainly used for polishing straight-edged machines and double edged machines, while straight BK wheel is used for polishing of irregular shape machines. BK wheel is remarkable in mark removal and has good wear-resistance. It can also be used for glass bottom edge polishing and chamfering polishing. Grit sizes for BK wheel are available at 40, 60, 80, 120, 240, etc.

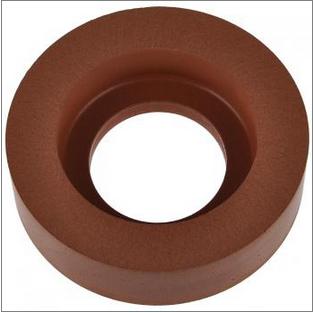

2. BD polishing wheel
BD wheel is made of special macromolecule materials, sharp aluminum oxide and silicon carbide. It has excellent flexibility and polishing efficiency. The advantages are that the shape will maintain for a long time, and the brightness of glass edge is very good after polishing. It is a typical the edge processing technology for glass. Its scope of application: the polishing wheel types on shaped machine includes cylindrical glass polishing: <180（μm）
linear velocity: 25m/s
revolving speed: 3000 /min
particle size: JIS 600
circular degree: < 180（μm）
material: rare earth polishing sand 150 * 22 * 15mm
BD wheel is installed on shaped edge grinding machine, straight-line round edge machine or the lavabo edge grinding machine, also known as edge polishing wheel for glass. BD wheel has sharp grinding and great polishing effects, is suitable for processing large-area glass. It won’t tremble even if used on device with low accuracy. It is suitable for processing into OG, 2 OG, 3 OG, 45 ° angle and other wheels and is widely used in polishing circular flats, table glass, bathroom glass, inferior glass, water meter glass, craft glass, glass table, and the bottom edge polishing of cosmetic mirror.
3. 10S polishing wheel
4. Precise polishing wheel
